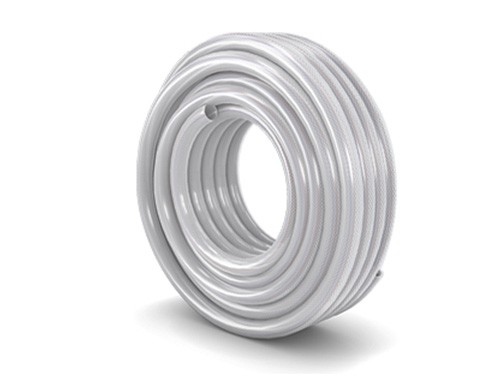

RFL PVC Braided Hose Pipe

It is a superior replacement to conventional rubber hoses as it is made of PVC.
Composition: Made by reinforcement (Braiding) of synthetic yarn in between two or more layers of Soft PVC. The yarn is reinforced in crosswise as well as in longitudinal directions.
Features:
Leak Proof
Long lasting & maintenance free
Better Flow Characteristic
Longer service life
Application:
To convey gas, oil & water.
It is used as a high pressure capability pipe.



Buy Online

Quality Assurance

Super High Performance

Extreme Heavy Duty

ISO Certified Company

Environment Friendly

Fully Factory Made

Product Specification

Code Size (Inch) Length (Feet) Thickness (mm) Inner Diameter (mm) Color
985141 5/16'' 164' 1.60 - 1.90 7.0-7.2 white
84689 3/8'' 164' 1.80 - 2.00 9.5-9.6 white
84389 3/8'' 328' 1.80 - 2.00 9.5-9.6 white
84390 1/2'' 328' 2.00 - 2.20 12.1-12.3 white
985182 3/4'' 164' 1.60 - 1.90 18.9-19.1 white
982524 3/4'' 328' 1.60 - 1.90 18.9-19.1 white
84391 3/4'' 328' 2.20 - 2.40 18.9-19.1 white
84392 1'' 164' 2.20 - 2.40 25.0-25.2 white
982529 1.25" 164' 2.60-3.00 31.6-31.8 white
